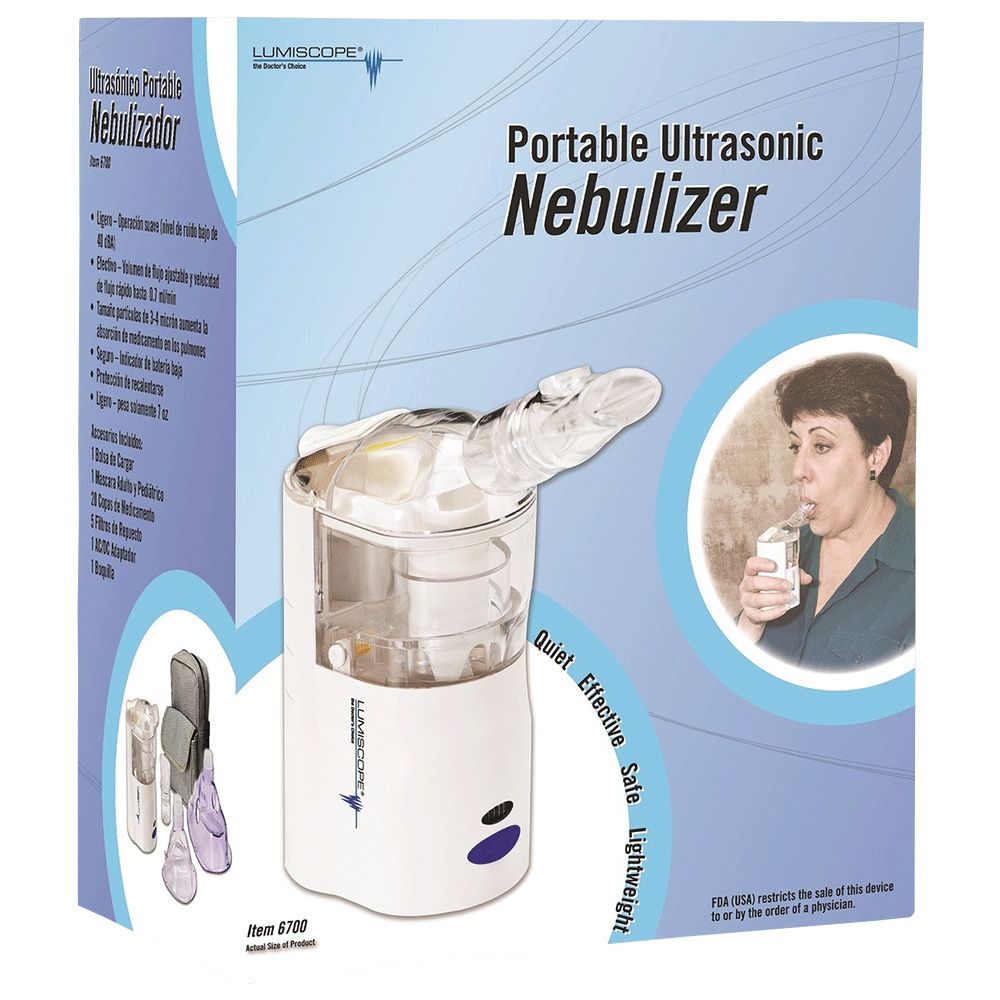

Graham Field Lumiscope Portable Ultrasonic Nebulizer Kit

Graham Field Lumiscope Portable Ultrasonic Nebulizer Kit

  • FSA Approved

Item 6700 is backorder and will be available to purchase once it is back in stock.

Graham Field Lumiscope Portable Ultrasonic Nebulizer is designed to be used by an adult or pediatric patient to produce medicated aerosols for inhalation therapy. Features a two-valve system that ensures maximum efficiency of inhalation, thus reducing the waste of medication. The mouthpiece expiration valve opens during expiration, allowing the patients exhaled air to pass to atmosphere, avoiding contamination of the device. The valve closes during inspiration, maximizing the inhalation amount.

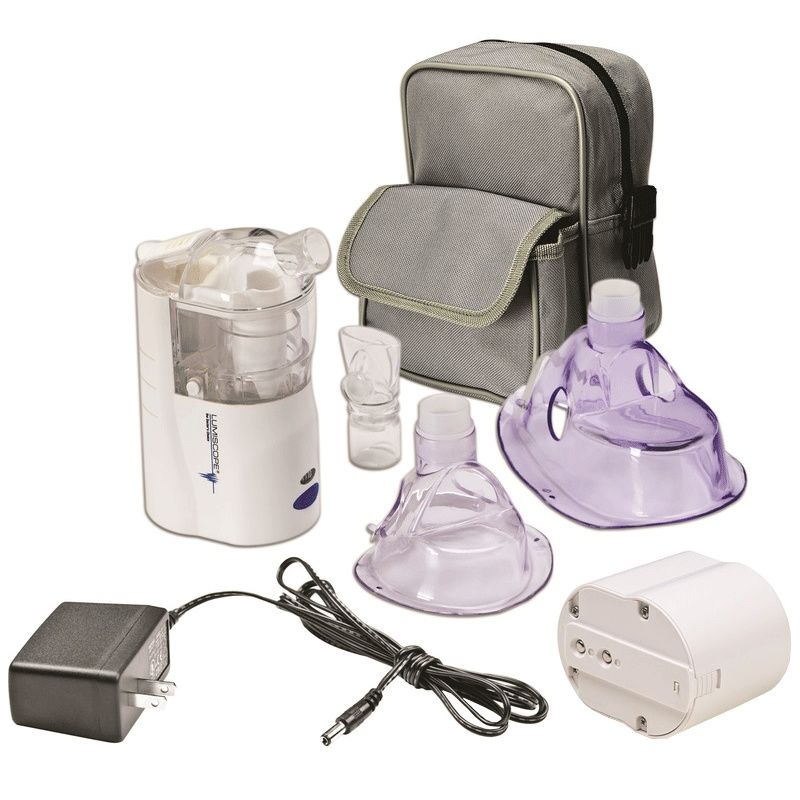

Graham Field Lumiscope Ultrasonic Nebulizer Kit Includes

  • 1 Carrying Bag

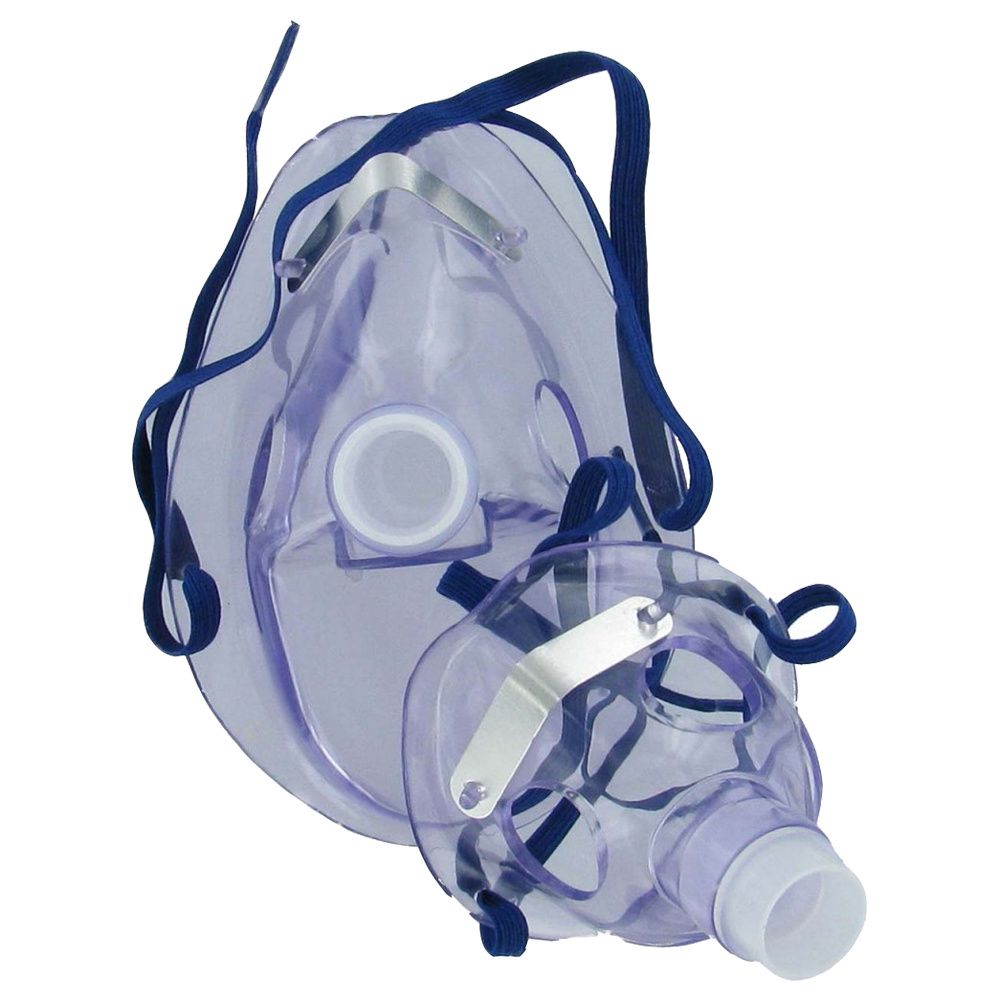

  • 1 Adult Mask
  • 1 Pediatric Mask

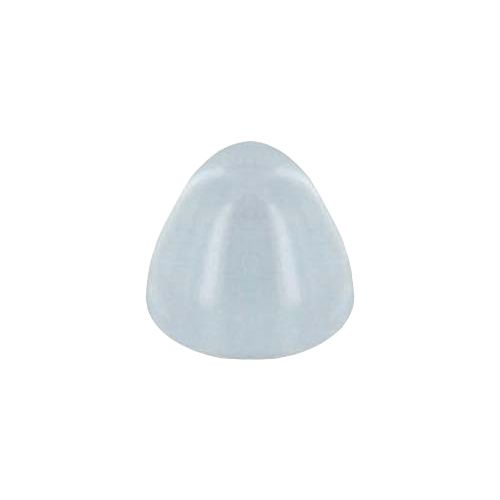

  • 20 Medication Cups

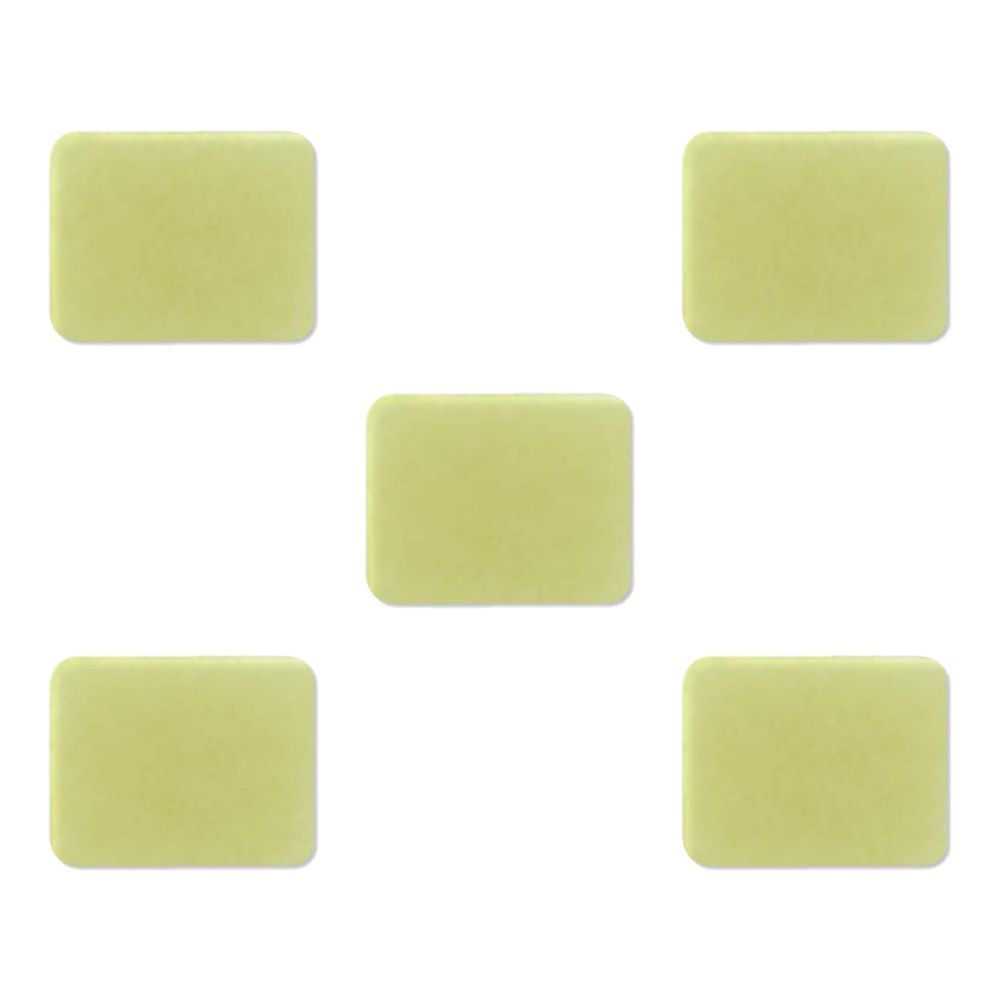

  • 5 Replacement Filters

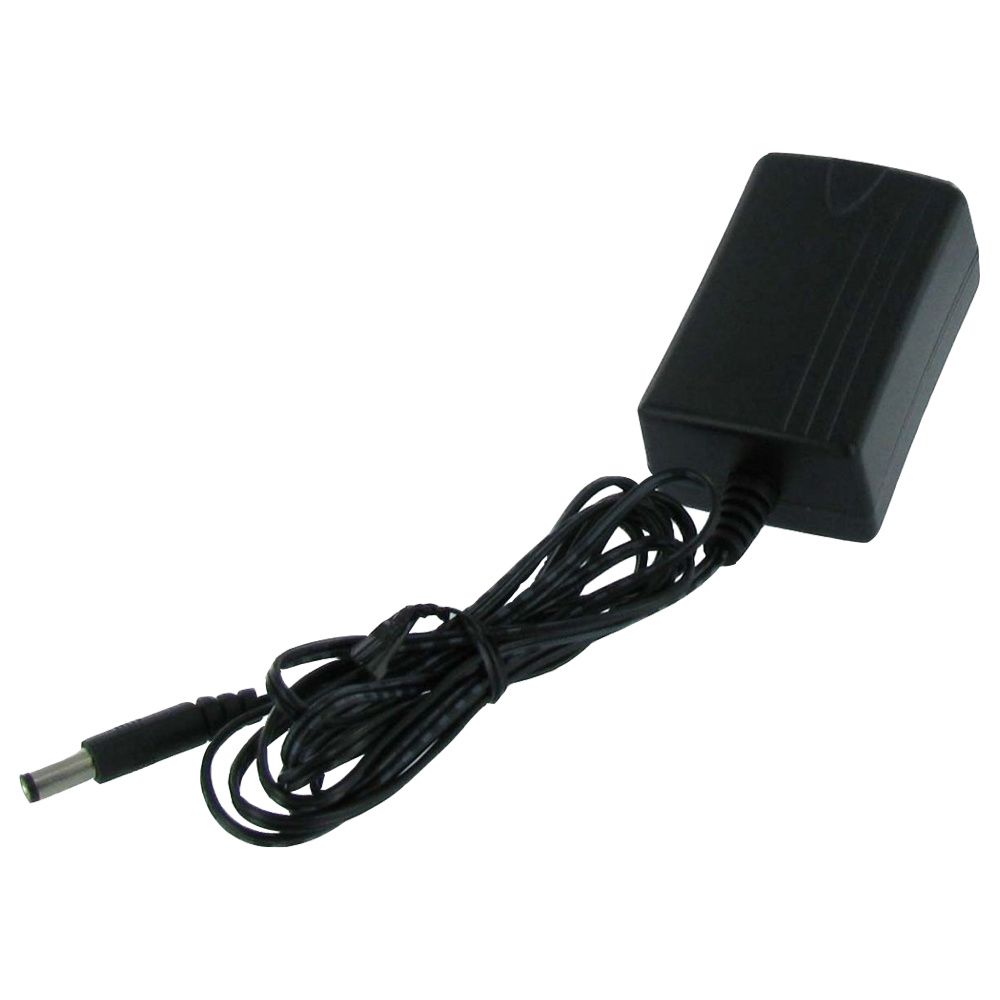

  • 1 AC/DC Adapter

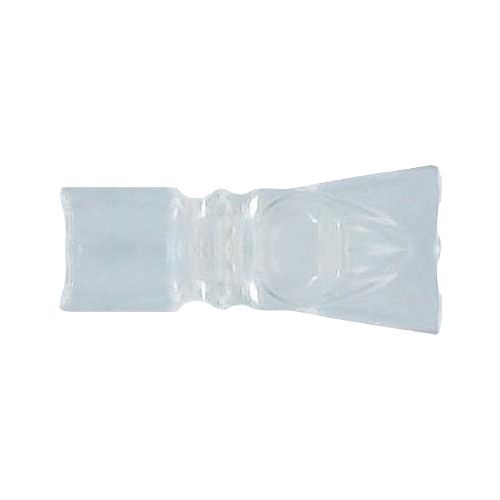

  • 1 Mouthpiece

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

"

 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov


"

Item # Desc Pkg Price

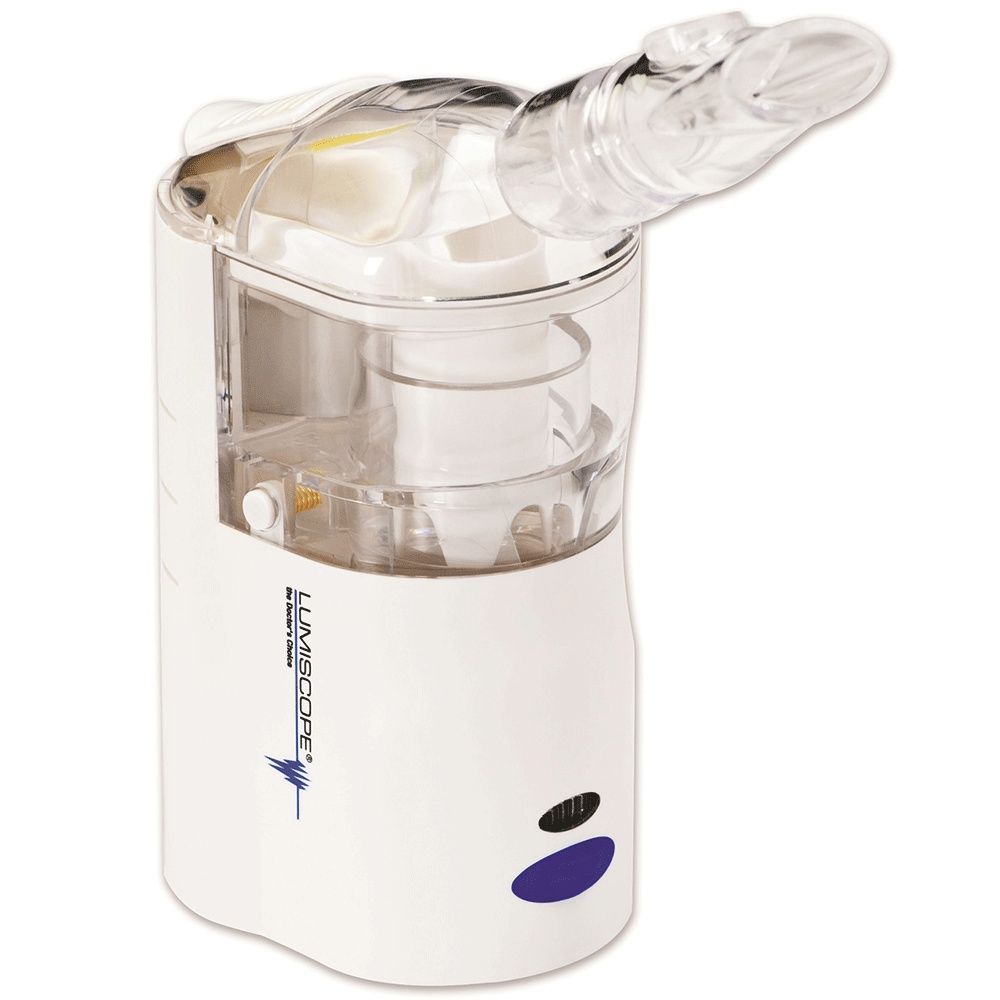

6700 Without Battery Each
$154.29
$111.33

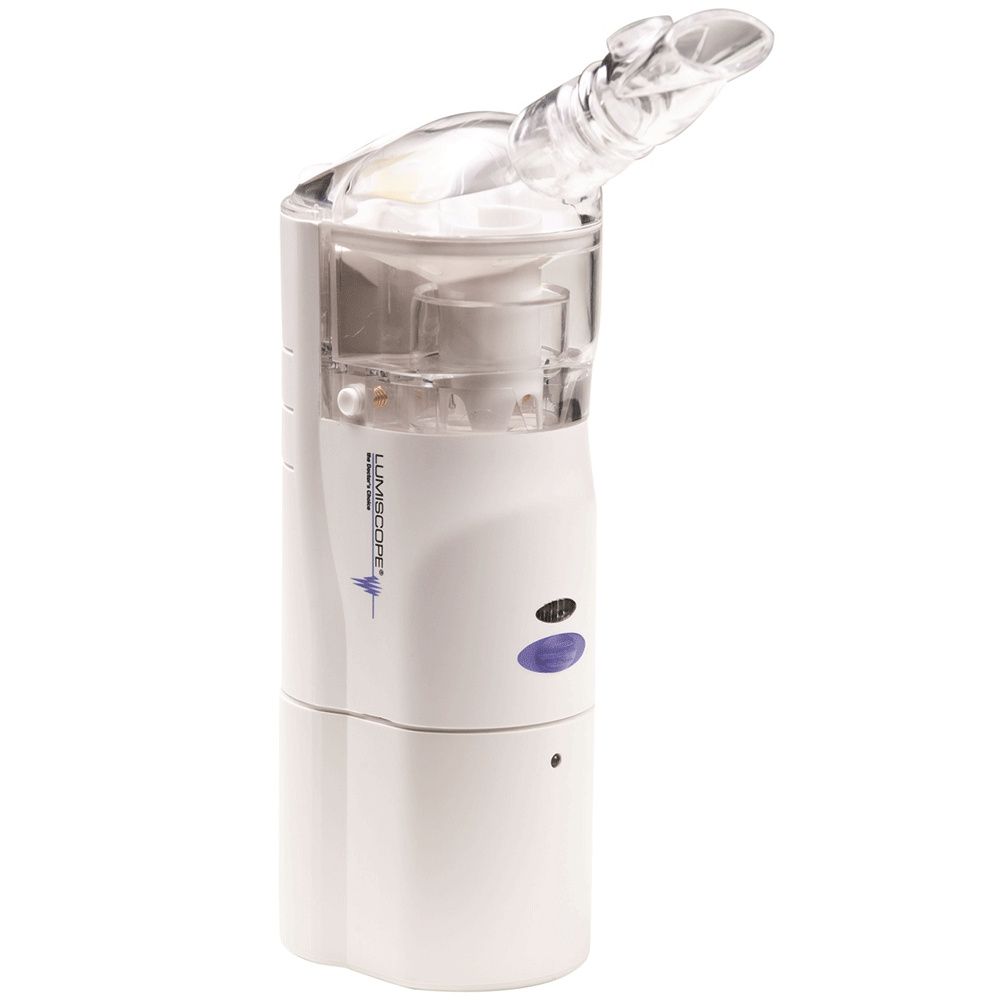

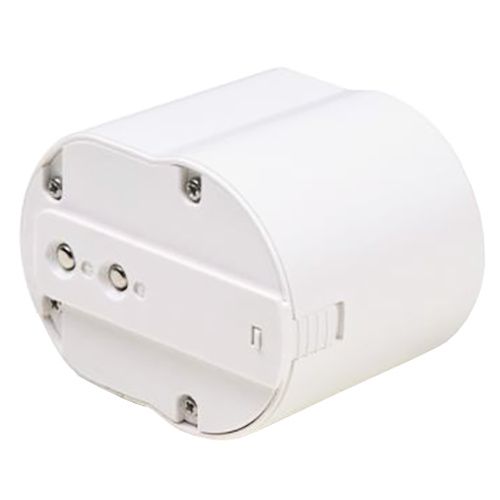

6700K Nebulizer Kit With Battery Each
$175.69
$126.80

Graham Field Lumiscope Portable Nebulizer Features

  • Adjustable flow volume and fast flow rate of up to 0.7 ml/min
  • Extremely quiet operation
  • Noise level below 40 dBA
  • 3-4 microns particle size increases absorption of medication into the lungs
  • Safe Low battery indicator
  • Overheat protection
  • Lightweight - weighs only 7 oz
  • Available in white color
  • Also Available Sold Separately
    - Graham Field Ultrasonic Nebulizer Filters
  • Indications for therapy include:
    - Asthma
    - Chronic bronchitis
    - Infection of the upper respiratory tract
    - Chronic obstructive pulmonary disease
    - Other respiratory disorders in accordance with a physicians prescription
  • Product Manual

How To Use GF Lumiscope Ultrasonic Nebulizer?

  • Setup
    - Remove the top cover and nebulization chamber from the device
    - Simultaneously press the button on each side of the air-flow chamber to remove the air-flow chamber and medication cup from the device
    - Fill the reservoir of the device with distilled water until it reaches exactly the level marked in red (approximately 4 ml). This amount of water serves as a liquid conductor, to conduct the ultrasound waves to the medication, and will never be nebulized
    NOTICE: The nebulizer will not operate if the chamber is not filled with water.Carefully insert the medication cup as shown, taking care not to damage it
    - Pour the physician-prescribed medication into the medication cup. If the dose to be inhaled is larger than the maximum capacity of the medication cup, divide it into several separate inhalations
    - Re-install the air-flow chamber, nebulization chamber, and top cover on the device. Apply sufficient pressure when re-installing to ensure that they are securely closed
    - Insert the mouthpiece or one of the two provided masks into the front of the device as shown
  • Cleaning the Nebulizer After Each Use
    To prevent possible risk of infection from contaminated medication, clean the nebulizer as follows after each treatment
    - Ensure the plug is disconnected from the device;s power socket
    - Remove the top cover, nebulization chamber, air-flow chamber, and medication cup from the device. Remove the filter from the cover
    - Completely empty the conduction liquid in the reservoir
    - Wipe the main unit with a clean, soft, moistened cloth
    - Wash the top cover, nebulization chamber, air-flow chamber, mouthpiece, masks, and medication cup in warm, soapy water, and rinse thoroughly
    - Allow to air dry
    - Store in a clean, dry location
  • Cleaning the Nebulizer Daily
    - To prevent possible risk of infection from contaminated medication, clean the nebulizer as follows daily
    - Once daily, after washing as above, soak the washed components in a fresh solution consisting of one part warm water and one part white vinegar for 30 minutes followed by a warm water rinse
    - Allow to air dry
    - Store in a clean, dry location

  • Safety Precaution
    - Indicates a potential hazard situation or unsafe practice that, if not avoided, will result in death or serious personal injury
    - Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in death or serious personal injury
    - Indicates a potential hazard or unsafe practice that, if not avoided, could result in minor or moderate personal injury
    - Indicates a potential hazard or unsafe practice that, if not avoided, could result in product or property damage
  • To reduce the risk of electrocution
    - Always unplug this product immediately after use
    - Do not use this product while bathing, showering, washing dishes, or close to water sources of any kind
    - Do not place or store device where it can fall or be pulled into a tub or sink
    - Do not place device in or drop into water or other liquid
    - Do not reach for a device that has fallen into water. Unplug it immediately
  • To reduce the risk of burns, electrocution, fire or personal injury
    - Never leave this device unattended when plugged in
    - This product contains small parts that may present a choking hazard to small children. Always use close supervision when this device is used by or near children or those who require close supervision
    - Children under the age of 3, or any patient who is unable to use a mouthpiece properly under supervision, should use a mask
    - Never operate this product if
    • It has a damaged cord or plug
    • It is not working properly
    • It has been dropped or damaged
    • It has been dropped into water
    - Keep the cord away from heated surfaces.Never block the air openings of this product or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair and the like
    - Never drop or insert any object into any openings or hose
    - Never use this device while drowsy or sleeping
    - Do not use this device outdoors or operate where aerosol (spray) products are being used
    - Do not use this device in the presence of flammable anesthesia or where oxygen or nitrous oxide is being administered. This device has no AP or APG protection
    - Connect this device to a properly grounded outlet only
    - Unplug the device before filling or cleaning the nebulizer
    - This device is oil-free. Do not lubricate
    - Do not remove the nebulizer while the device is operating
    - Do not leave medication in the nebulizer when it is not in use
    - Use the nebulizer intermittently, the maximum operating period is 45 minutes. The nebulizer must stand unused for 45 minutes between uses
    - The mouthpiece and mask are for use by one person only; in order to avoid infection, do not share them

  • Warning: This product contains a chemical known to the State of California to cause cancer and reproductive or developmental harm

Specification

Particulars Specifications
Power Supply AC/DC Adapter (240V, 50Hz; 12VDC 800mA)
Power Consumption 12W (12V/1A)
Sound Level < 40dB
Frequency 2.8 Mhz
Particle Range 0.5~4.0 microns
Medication Cup Capacity 5 ml maximum
Average Rate 0.7 ml/min. maximum (NaCl0.9% Normal Saline)
Intermittent Use 45 min. on/ 45 min. off
Operation Conditions 50°F - 104°F (10°C), RH 10% - 95%
Storage Conditions -13°F - 140°F (25°C - 60°C), RH 10% - 95%
Dimensions 5.1" x 3.3" x 2.2"
Weight without batteries 0.44 lb

Warranty

1 year warranty
