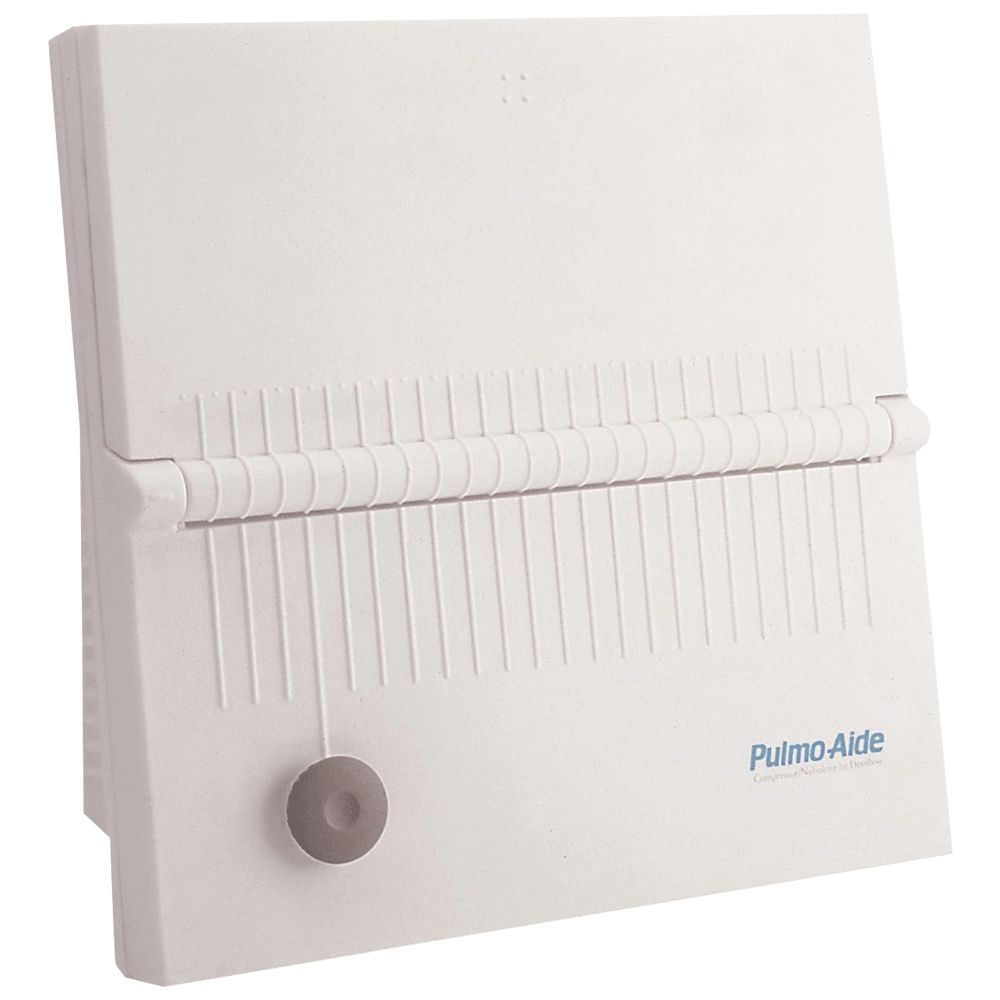

Devilbiss Pulmo-Aide Compressor Nebulizer System

Devilbiss Pulmo-Aide Compressor Nebulizer System

Brand/Manufacturer: DEVILBISS
Hpfy stores Save
Authorized Retailer Badge
  • HyGiene Products
  • Non Returnable
  • Prescription required
  • FSA Approved
  • Made in USA

Devilbiss Pulmo-Aide Compressor Nebulizer System comes ready to use with all the attachments - filter, tubing and disposable nebulizer. It is unmatched in quality and performance. Built-in nebulizer holder is a convenient place to store nebulizer if the treatment is interrupted.

Item # Desc Pkg Price
5650D 10.5"H X 6.3"W X 10.1"D Each


  • Devilbiss Pulmo-Aide Compressor Nebulizer System is used for inhalation therapy for the treatment of asthma, bronchitis, cystic fibrosis, emphysema and other upper respiratory tract disorders
  • Metal frame motor construction
  • Unique 4-pole motor design extends life of the unit
  • Large built-in compartment for storing nebulizers and tubing
  • Built-in nebulizer holder
  • Includes free instructional DVD
  • Longest lasting compressor on the market with an average product life of 10 years
  • Also available (separately):
    - Devilbiss Long Life Air Inlet Filter (Code 5650D-602)
    - Devilbiss VixOne Disposable Nebulizer (Code : 3655D-621)

More Information

  • To reduce the risk of electrocution
    - Always unplug this product immediately after using
    - Do not use while bathing
    - Do not place or store product where it can fall or be pulled into a tub or sink
    - Do not place in or drop into water or other liquid
    - Do not reach for a product that has fallen into water. Unplug immediately
  • To reduce the risk of burns, electrocution, fire or injury to persons
    - The product should never be left unattended when plugged in
    - Close supervision is necessary when this product is used by, on, or near children or physically incapacitated individuals
    - Use this product only for its intended use as described in this guide. Do not use attachments not recommended by the manufacturer
    - Never operate this product if:
    • It has a damaged power cord or plug
    • It is not working properly
    • It has been dropped or damaged
    • It has been dropped into water
    - Return the product to an authorized DeVilbiss service center for examination and repair
    - Keep the power cord away from heated surfaces
    - Never block the air openings of the product or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like. 7. Never use while drowsy or asleep
    - Never drop or insert any object into any opening or hose
    - Do not use outdoors. This product is for household use only
    - Do not use in an oxygen enriched environment
    - Connect this product to an appropriate outlet only
    - Do not use this product with a DC to AC converter, or with any AC voltage and/or frequency other than specified
    - Do not operate unit in a backpack or carrying bag
    - Care should be taken when this product is used in the vicinity of other electronic equipment concerning possible electromagnetic or other interference between them
  • How to Operate Compressor
    - Place compressor on a level, sturdy surface so that the controls can be easily reached when seated
    - Never block the air openings of the product or place it on a soft surface, such as a patients lap or a bed or couch where the air openings may be blocked
    - Open door to storage compartment
    - Make sure the power switch is in the Off position
    - Unwrap power cord and plug power cord into an appropriate wall outletWash hands
    - Connect one end of the nebulizer tubing to the compressor air-outlet connector
    - Assemble clean nebulizer and add prescribed medication
    - Assemble mouthpiece, t-piece, and corrugated tubing (if applicable) and insert into the top of the nebulizer cap. If using an aerosol mask, insert the bottom part of the mask directly into the top of the nebulizer cap
    - Attach tubing to nebulizer air-inlet connector
    - Press the power switch On to start the compressor
    - Begin treatment by placing the mouthpiece between teeth. With mouth closed, inhale deeply and slowly through mouth as aerosol begins to flow, then exhale slowly through the mouthpiece. If treatment needs to be interrupted, simply press power switch Off. If an aerosol mask is used, place the mask over mouth and nose. As aerosol begins to flow, inhale deeply and slowly through mouth, then exhale slowly
    - When treatment is complete, turn unit off by pressing the power switch to the Off position. Unplug the unit from the wall power outlet.Nebulizer CleaningClean After Every Use:
    - With power switch in the Off position, unplug power cord from wall outlet
    - Disconnect tubing from the air-inlet connector and set aside
    - Disassemble mouthpiece or mask from cap. Open nebulizer by turning cap counterclockwise and removing baffle
    - Wash all items, except tubing, in a warm water/dishwashing detergent solution. Rinse under warm tap water for 30 seconds to remove detergent residue. Allow to air dry
  • Disinfect Daily
    - Using a clean container or bowl, soak items in three parts warm water (131ºF-149ºF/55ºC-65ºC) to one part white vinegar (>=5% acetic acid concentration) for 30 minutes OR use a medical bacterial-germicidal disinfectant available through your provider. Be sure to follow manufacturers instructions carefully
    - With clean hands, remove items from disinfectant solution, rinse under warm tap water, and air dry on a clean paper towel. Store in a zip-lock bag
  • Maintenance
    - All maintenance must be performed by a qualified DeVilbiss provider or authorized service center


Particulars Dimensions
Size 10.1" D x 10.5" H x 6.5" W
Electrical requirements 1.3 amps, 115VAC 60Hz
Sound level 51-55 dBA
Power consumption 90 watts maximum
Maximum compressor pressure 35 psig
Compressor free air flow 12 lpm
Operating temperature range +40° to +104°F (+5 to +40°C)
Operating Humidity up to 95% non-condensing
Storage/Transport Temperature Range -40° to +158°F (-40° to +70°C)
Storage/Transport Humidity up to 95% non-condensing
Storage/Transport Pressure 7.3 to 15.4 psia
Supplied Nebulizer Nebulization Rate 0.15 ml/min or greater
Supplied Nebulizer MMAD 5 microns or less
Supplied nebulizer capacity 10 ml (cc)


5 year limited warranty
